SMT Wire Wound Inductor 0.1uH Ferrite Low Inductance Miniature Size

Shenzhen Winsun Technology Co., Ltd.
Contact Now

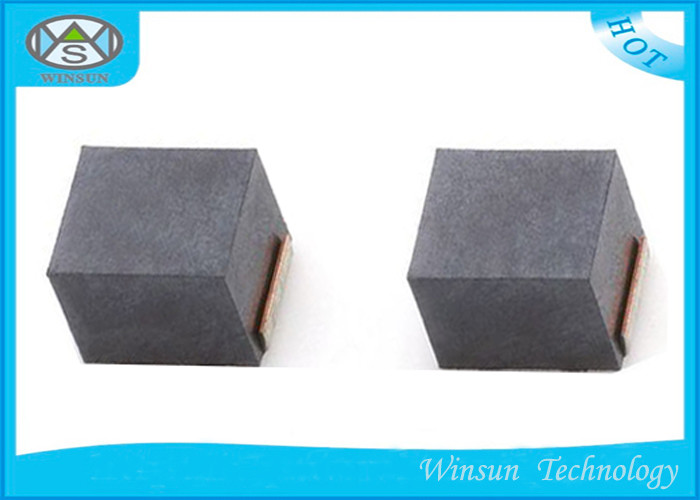

SMT Wire Wound Inductor 0.1uH Ferrite Low Inductance Miniature Size

  • 1
  • 2

Brand Name : WS

Model Number : NLV25T-R10J-PF

Certification : SGS

Place of Origin : CN

MOQ : 2000pcs

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 1000000pcs/day

Delivery Time : 3-5 work days

Packaging Details : plastic reel + carton

Color : Gray

Inductance : 0.1uH

Size : 2520

Rated Current : 280 mA

DCR : 0.8 Ω

Test frequency : 100M Hz

Lead time : Fast

Contact Now

High Frequency Low Inductance TDK NLV25TR10JPF SMT Ferrite Wire Wound Inductor

SPECIFICATIONS:

* Inductance: 0.1uH

* Size: 2.5×2.0×1.8mm (L×W×T)

* Rated Current : 280mA(Max)

* DCR : 0.8 Ω (Max)

* Test frequency: 100M Hz

* The product has good heat durability that withstands lead-free
compatible reflow soldering conditions.
* Lead-free material is used for the plating on the terminal
* The electrical characteristics, reliability, shape and pad shape
are the same as the previous NL series.
* The product uses metal terminals, which realize excellent
connection reliability.
* Highly heat resistant thermoplastic resin is used to form the
exterior package.
* From 0.01μH to 100μH, all of the products in the E-12 series are
J(±5%) tolerance products.
* This product is in compliance with the RoHS Directive. Other
products with specifications that do not include exemption
regulations are also available.

* Operating temperature range :–40 ~ +105°C
* Storage temperature range: –40 ~ +105°C

* Minature size, suitable for SMT;
* Using terminal electrode structure to restrain the
parasitic component effect quite caused by lead;
* Low DC resistance , high current and high inductance;
* Execellent in solderability and heat resistance.


APPLICATIONS:
* Audio-visual equipment including TVs, VCRs and digital cameras.

* Electronic equipment used in onboard automobile equipment
including car audio and ECU systems.
* Other electronic equipment including HDDs and ODDs.

* Electronic equipment used in communication infrastructures
including xDSL and mobile base stations.

SPECIFICATIONS:

* Operating temperature range : –40 to +105°C
* Storage temperature range –40 to +105°C

PACKAGING STYLE AND QUANTITIES:

Packaging style: Taping
Quantity: 2000 pieces/reel

Inductance Size Rated Current DCR Test frequency
1uH 2.5×2.0×1.8mm (L×W×T) 280mA(Max) 0.8 Ω (Max) 100M Hz

IRON SOLDERING:

Tip temperature 300 to 350°C
Heating time 3 secconds/soldering
Soldering rod specifications Output: 30W Tip diameter: 1mm

• Based on the above conditions, use a maximum product temperature of
260°C and a maximum accumulated heating time of 10 seconds as a
guideline.
• Please contact us for details.

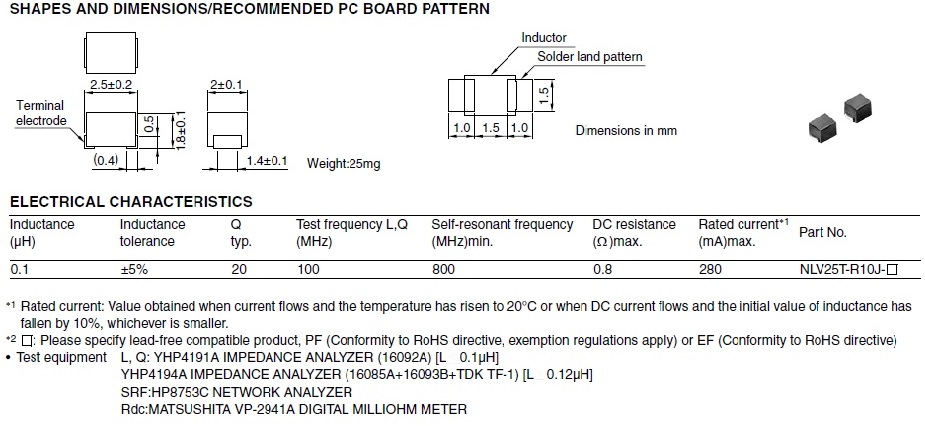

DIMENSIONS : (unit: mm/inch)

SMT Wire Wound Inductor 0.1uH Ferrite Low Inductance Miniature Size

SMT Wire Wound Inductor 0.1uH Ferrite Low Inductance Miniature Size

Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect

Contact Details:
Contact: Angel Sun
Tel: +86-13528847020
Email: Admin@winsunhk.cn
Skype: Angelsun618
Whatsapp: 13528847020
Wechat: 13528847020
QQ: 553695308
