Yellow Monolithic Ceramic Capacitor Good Insulation For Micro Electronic Devices

Shenzhen Winsun Technology Co., Ltd.
Contact Now

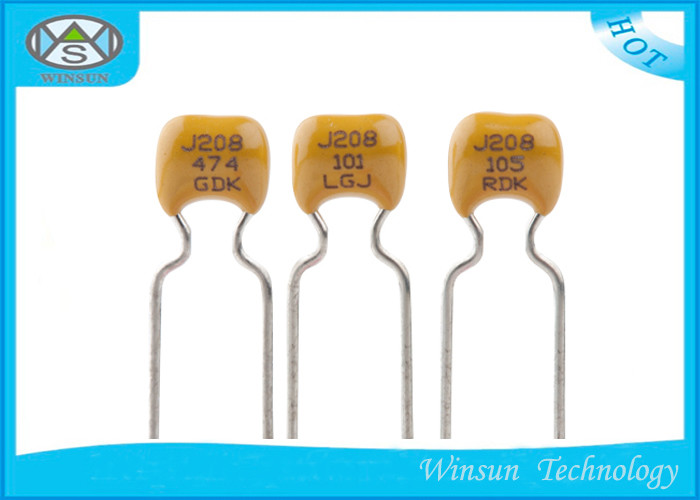

Yellow Monolithic Ceramic Capacitor Good Insulation For Micro Electronic Devices

  • 1
  • 2

Brand Name : WS

Model Number : WS-MLCM-Cap

Certification : SGS

Place of Origin : Shenzhen of China

MOQ : 500pcs

Price : Lowest price

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 1000000pcs/day

Delivery Time : 3-5 work days

Packaging Details : plastic bag + carton

Color : Yellow

Material : Ceramic

Rated Voltage : 4v-100v

Package : DIP

Quality : High quality

Delivery : Fast

Shipping : By DHL, FEDEX, TNT ,UPS,EMS ect.

Contact Now

Multilayer Ceramic Capacitor / High Quality WS-MLCM Series Monolithic Capacitor

Product Discription:

Using ceramics as a medium, copper or tin-plated steel wire as the lead wire, coated with epoxy resin.
Features:Disc type, one-way leads to the wire; high withstand voltage , good insulation, low-loss
Range of Applications:Widely used in electronic precision instruments, all sorts of small electronic equipment can be used in resonance, coupling, filter, and bypass.

Capacitance Range: 1pF~1uf
Operating Temperature: -55~+125°C(Y5V:-25~+85°C)
Rated Voltage: 4V~100V

Capacitance Precision: +/-1%;+/-5%;+/-10%;+/-20%;+80/-20%
Insulation Resistance: ≥ 1000MΩ or ≥ 100Ω • F
The Loss Tangent: ≤0.025 (Y5V: ≤0.05)
Temperature Characteristic: NPO: 0±30ppm/°C,X7R:≤ ±15%
Rate of Change of Capacitance : ≤±15%; Q/D.F.:≤0.07;I.R.:≥1000MΩ or ≥500•F

Applications:
Small and micro electronic devices(such as liquid crystal watches and micro-equipment)
Electronic precision instruments
Mainly used in the circuit of bypass, filter , coupling etc .


Specifications:

item test standard
NP0(CH) X7R(B) Z5U(E) Y5V(F)
capacitance(C) 25ºC,1MHz,1.0Vrms 25ºC,1KHz,1.0Vrms,C≥10uF,120Hz,0.5Vrms
in the tolerrance
dissipation factor(DF) C≥30P,Q≥1000;
C<30P,Q≥400+20*C
C<0.033uF,DF≤3.5%,
C≥0.033uF,DF≤5.0%
≤5% C≥220NF<7.0%;
C<220NF,≤5.0%
insulation resistance(IR) Ur<500V,TV=Ur;
Ur≥500V,TV=500V;
C≤10nF,IR≥10000MΩ,
C>10nF,R*C≥100S
C≤25nF,IR≥4000MΩ;
C>25nF,R*C≥100S
withstanding voltage Ur≤100V,TV=2.5Ur;
200V≤Ur≤1000V,TV=1.5Ur;
Ur>1000V,TV=1.2Ur;
